 .:: Sample Pumps ::.


EPOND supplies various sample pumps, but this one is the best - the 'MP2' 4-channel peristaltic pump by ESI ... price : CHF 2387,-

 .:: Difficult Samples ::.


We also have peri-pump tube types for 'difficult' samples such as organics, petroleum derivatives and very concentrated acids.

EPOND is always on the lookout for sample transport innovations :

 -  here's an example: for a long time, joining sample capillaries to
 peristaltic pump tubes was a challenge to ingenuity -
  the inner diameters of peristaltic pump tubes are often so small
 that they refuse to fit to standard 1-16th inch diameter PTFE tubes.
 Does this ring a bell ?
 EPOND responded to this need in 2003, with 'CT-style pump tubes :

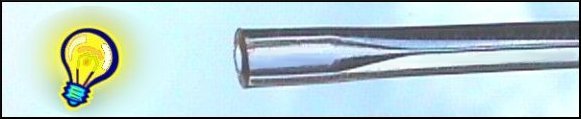

These 'cone-terminated', or 'CT-style' tubes are widened at precisely the point needed -
where a connection is made with the sample transport tube.

- another, more recent, example is EPOND's   'AirBip' sample sentry.
This electronic device alerts ICP operators to the presence of gas in sample lines, with a
response matched to the seriousness of the interruption.

  2 Tag Tygon ST peristaltic pump tubes, plain and CT-types
  Length:   400mm
  Note:   delivery from stock for Part Nos. listed in  black  only
EPOND P/No. Description Tag
colours
ID
mm
Wall
mm
OD
mm
 EPT0188  pkt of 12 2-tag Tygon R3603 Peri-pump tubes orange/black 0.13 0.91 1.95
 EPT0001  pkt of 12 2-tag Tygon R3603 Peri-pump tubes orange/red 0.19 0.91 2.01
 EPT0001-CT  pkt of 10 2-tag 'CT-style' Tygon Peri-pump tubes orange/red 0.19 0.91 2.01
 EPT0002  pkt of 12 2-tag Tygon R3603 Peri-pump tubes orange/blue 0.25 0.91 2.07
 EPT0002-CT  pkt of 10 2-tag 'CT-style' Tygon Peri-pump tubes orange/blue 0.25 0.91 2.07
 EPT0003  pkt of 12 2-tag Tygon R3603 Peri-pump tubes orange/green 0.38 0.91 2.20
 EPT0003-CT  pkt of 10 2-tag 'CT-style' Tygon Peri-pump tubes orange/green 0.38 0.91 2.20
 EPT0004  pkt of 12 2-tag Tygon R3603 Peri-pump tubes green/yellow 0.44 0.91 2.26
 EPT0004-CT  pkt of 10 2-tag 'CT-style' Tygon Peri-pump tubes green/yellow 0.44 0.91 2.26
 EPT0005  pkt of 12 2-tag Tygon R3603 Peri-pump tubes orange/yellow 0.51 0.91 2.33
 EPT0005-CT  pkt of 10 2-tag 'CT-style' Tygon Peri-pump tubes orange/yellow 0.51 0.91 2.33
 EPT0006  pkt of 12 2-tag Tygon R3603 Peri-pump tubes white/yellow 0.57 0.91 2.39
 EPT0007  pkt of 12 2-tag Tygon R3603 Peri-pump tubes orange/white 0.64 0.91 2.46
 EPT0007-CT  pkt of 10 2-tag 'CT-style' Tygon Peri-pump tubes orange/white 0.64 0.91 2.46
 EPT0008  pkt of 12 2-tag Tygon R3603 Peri-pump tubes black/black 0.76 0.86 2.48
 EPT0009  pkt of 12 2-tag Tygon R3603 Peri-pump tubes orange/orange 0.89 0.86 2.61
 EPT0010  pkt of 12 2-tag Tygon R3603 Peri-pump tubes white/black 0.95 0.86 2.61
 EPT0011  pkt of 12 2-tag Tygon R3603 Peri-pump tubes white/white 1.02 0.86 2.74
 EPT0012  pkt of 12 2-tag Tygon R3603 Peri-pump tubes white/red 1.09 0.86 2.81
 EPT0013  pkt of 12 2-tag Tygon R3603 Peri-pump tubes red/red 1.14 0.86 2.86
 EPT0014  pkt of 12 2-tag Tygon R3603 Peri-pump tubes red/grey 1.22 0.86 2.94
 EPT0015  pkt of 12 2-tag Tygon R3603 Peri-pump tubes grey/grey 1.30 0.86 3.02
 EPT0016  pkt of 12 2-tag Tygon R3603 Peri-pump tubes yellow/yellow 1.42 0.86 3.14
 EPT0017  pkt of 12 2-tag Tygon R3603 Peri-pump tubes yellow/blue 1.52 0.86 3.24
 EPT0018  pkt of 12 2-tag Tygon R3603 Peri-pump tubes blue/blue 1.65 0.86 3.37
 EPT0019  pkt of 12 2-tag Tygon R3603 Peri-pump tubes blue/green 1.75 0.86 3.47
 EPT0020  pkt of 12 2-tag Tygon R3603 Peri-pump tubes green/green 1.85 0.86 3.57
 EPT0021  pkt of 12 2-tag Tygon R3603 Peri-pump tubes purple/purple 2.06 0.86 3.78
 EPT0022  pkt of 12 2-tag Tygon R3603 Peri-pump tubes purple/black 2.29 0.86 4.01
 EPT0023  pkt of 12 2-tag Tygon R3603 Peri-pump tubes purple/orange 2.54 0.86 4.26
 EPT0024  pkt of 12 2-tag Tygon R3603 Peri-pump tubes purple/white 2.79 0.86 4.51
 EPT0222  pkt of 12 2-tag Tygon R3603 Peri-pump tubes black/white 3.17 0.86 4.89

* Peristaltic pump tubes of Viton, PharMed, silicone and other materials are available too.


 NEW  -   Three  files  of  ESI  peristaltic-pump  tubes,  as  PDF  downloads  -


2-stop tubes for the MP2 pump   bridge distance approx. 72 mm

standard 2-stop tubes   bridge distance approx. 145 mm

standard 3-stop tubes
